Name: Namur solenoid pilot valve 4282 monostable 551-PV 3/2-5/2 ATEX 230VAC
SKU: 1519
Price: 218.51428571429 EUR
Availability: InStock

Namur solenoid pilot valve 4282 monostable 551-PV 3/2-5/2 ATEX 230VAC

Namur solenoid pilot valve 4282 monostable 551-PV 3/2-5/2 ATEX 230VAC

€218.51 (excl. btw)

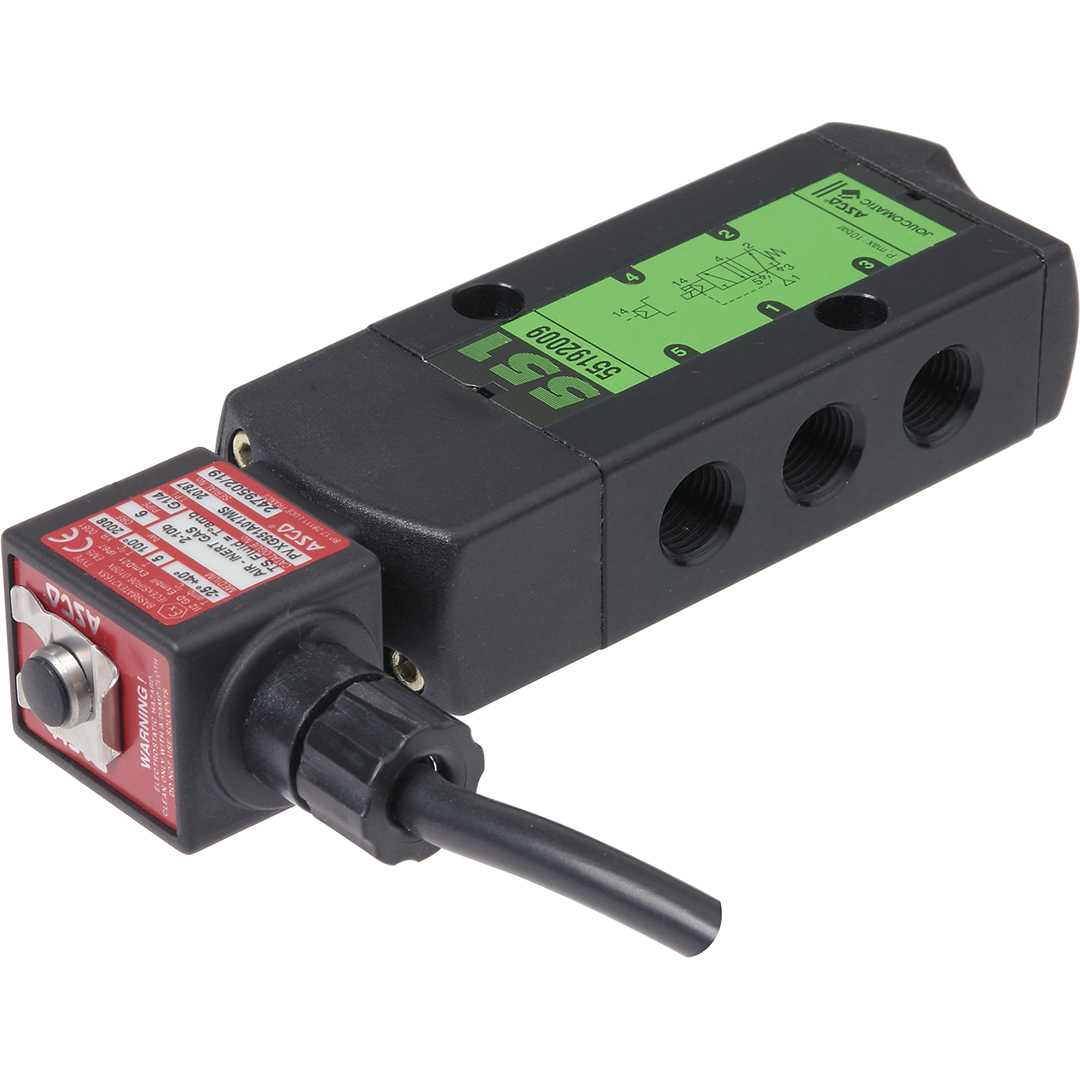

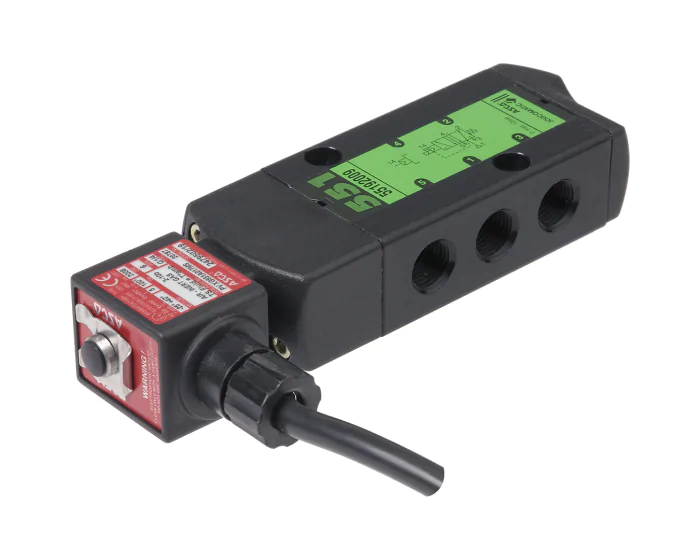

Namur solenoid pilot valve 4282 monostable ASCO 551-PV 3/2-5/2 ATEX certified for precise control of pneumatic actuators.

In stock Subject prior to sales
Categories : Pneumatische aandrijvingen

Documenten:

Technical datasheet FR

Download

Description
Technical Specifications

Lug type Body and disc in stainless steel A351 Gr. CF8M Stem in stainless steel AISI 630 Seat in PTFE For mounting between flanges PN 16 With pneumatic actuator spring return type PE, spring to close, air to open Equipped with: Electropneumatic positioner, single acting - 4/20 mA - VDI/VDE 90° mounting set

Specification	Value
Maximum delta P (bar)	10
Minimum delta P (bar)	2
ATEX atmosphere	IIC
ATEX compatible	Yes
Fluid	Air / Neutral gases / Filtered
Protection index (IP)	IP 67
Kv (m³/h)	0.60
Body material	Aluminium
ATEX protection mode	Ex mb
Pilot (NAMUR)	Asco
PS (bar)	10
Surface temperature	T4
Voltage	230 V AC
TS max (°C)	60
TS min (°C)	-25
Solenoid pilot valve type	monostable
Solenoid pilot valve ways	3/2 - 5/2
ATEX zone	1. 2. 21. 22
Warranty period	1 year

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
1520	Aluminium 230 V AC	042820	S1001446	€218.51 (excl. btw)	add to cart
1521	Aluminium 24 V AC	042821	S1001447	€218.51 (excl. btw)	add to cart
1522	Aluminium 24 V DC	042825	S1001448	€218.51 (excl. btw)	add to cart
